Description
Product Specifications
| No. | Parameter | Unit | Specification |
|---|---|---|---|
| 1 | Model Name | — | 9YG-1.0 Round Baler |
| 2 | Hitching Method | — | Tractive |
| 3 | Pickup Width | mm | 1,900 |
| 4 | Pickup Structure | — | Spring Tooth Type |
| 5 | Feeder Structure | — | Finger Roller + Drum |
| 6 | Chamber Mechanism | — | Drum Type |
| 7 | Chamber Width | mm | 1,000 |
| 8 | Chamber Diameter | mm | Φ1,000 |
| 9 | Rolling Drums | pcs | 16 (Drum) |
| 10 | Drum Diameter | mm | Φ222 |
| 11 | Baling Method | — | Net Wrapping |
| 12 | Matching Power | kW | 48–80 |
| 13 | Structural Mass | kg | 2,640 |
| 14 | PTO Speed | r/min | 720 |
| 15 | Overall Dimensions | mm | 3750×2300×2020 |
| 16 | Bale Density Control | — | Sensor Control |
| 17 | Bale Size (Dia.×Width) | mm | Φ1,100 × 1,000 |
| 18 | Bale Density | kg/m³ | 115–200 |
| 19 | Productivity | bales/h | 40–100 |
| 20 | Wheelbase | mm | 2,045 |

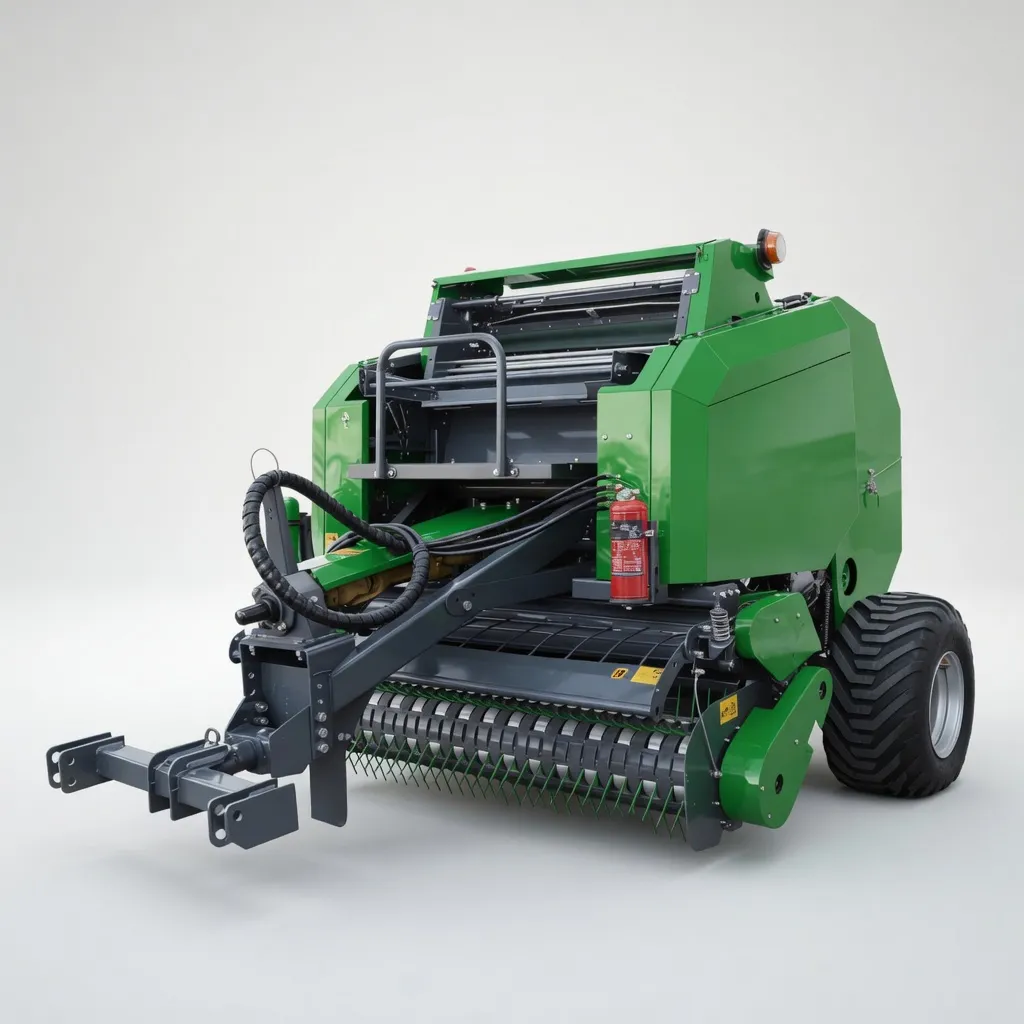

Product Overview
The 9YG-1.0 Round Baler answers a specific question that larger machines can’t: what is the most productive, highest-quality baler a 65–110 hp tractor can actually run reliably? The answer sits at 2,640 kg, 3,750 mm long, and priced substantially below anything in the S9000 or 1.25A range. This is a machine built around the realities of small-to-mid-size Australian farm operations — the family property running one 80 hp tractor, the beef block producing 400–600 silage bales per season, the mixed sheep and cropping enterprise that needs a reliable baler it can afford to own outright.
Inside the compact 3,750 × 2,300 × 2,020 mm working frame sits the same 16 × Φ222 mm drum compression system and sensor-controlled density logic that defines EverPower’s larger machines. The bale produced — Φ1,100 × 1,000 mm at densities between 115 and 200 kg/m³ — is lighter than a full-size bale but handles easily with a front-end loader spike, wraps cleanly with satellite or inline wrappers, and stacks predictably on farm trailers and in sheds. For properties producing under 3,000 bales per season, the 9YG-1.0 is the honest answer.
The 1,900 mm spring-tooth pickup spans a working width meaningfully larger than many machines in this class. It handles ryegrass, oaten hay, straw, and mixed pasture without the repeated blockages that narrower-feeder designs experience when windrow density spikes. At 720 r/min PTO and 48–80 kW power requirement, it pairs with virtually every 65 hp-and-above tractor running Australian farms today.
Core Features — Big-Baler Technology at Mid-Tier Weight
Only 2,640 kg — Genuine Mid-Tractor Compatibility
At 2,640 kg, the 9YG-1.0 is light enough that tractors from 65 hp upward handle it without dedicated ballast or tyre-loading adjustments. This is not a minor convenience — on many Australian family farms, the only available tractor is an 80–90 hp unit also needed for other tasks. A baler that imposes a 4,500 kg tow requirement takes that tractor out of rotation for other work; the 9YG-1.0 doesn’t. The compact 2,045 mm wheelbase also makes this machine genuinely manageable in tighter paddock layouts around irrigation infrastructure, shelterbelts, and farm dams.
1,900 mm Spring-Tooth Pickup
The 1,900 mm pickup is wider than the standard on most machines in this weight class, which commonly run 1.5–1.6 m. The wider tine bank handles large single-pass windrows from compact swathers without requiring the windrow to be split or raked into narrower rows first — saving a full pass across the paddock. Five rows of spring teeth with hydraulic float provide clean crop collection across undulating terrain at ground speeds up to the machine’s operating ceiling.
16-Drum Compression Chamber, Sensor Control
The Φ1,000 mm chamber uses 16 × Φ222 mm drums to compress the bale to Φ1,100 × 1,000 mm at densities between 115 and 200 kg/m³. Sensor-controlled density fires the auto net-wrap when the target pressure is confirmed — producing consistent bale weights without the operator needing to judge timing by chamber sound or visual cues. On dry oaten hay in WA’s wheatbelt, typical bale weights run 380–520 kg; on dense irrigated ryegrass, 420–580 kg. Either figure is consistent and handleable with standard farm equipment.
Fast Net-Wrap Cycle — Under 12 Seconds
The compact chamber means the net-wrap cycle on the 9YG-1.0 is marginally faster than on larger machines — door open, bale out, door closed in under 12 seconds on a well-adjusted machine. At the upper end of the 40–100 bale/hour productivity range, that cycle time is the limiting factor, and shaving two to three seconds per bale adds up to meaningful extra output over a full day. The net-wrap system fires automatically on sensor trigger; manual override is available when operator preference or crop conditions require it.
Purpose-Built for Massey Ferguson, Case IH, New Holland & John Deere 65–110 hp
The 9YG-1.0’s power and PTO requirements were set with Australian fleet demographics in mind. The dominant tractor bracket on Australian small-to-mid farms runs between 65 and 110 hp — the precise window the 1.0 targets. Validated compatible models include Massey Ferguson 5700 and 6700 Series (65–100 hp), Case IH Farmall 75–100 hp, New Holland T5 Series (75–115 hp), and John Deere 5M and 5E Series (70–100 hp) — covering the majority of tractors actively working smaller Australian properties.
Where the 9YG-1.0 Performs Best
Small-to-Mid Family Farm Hay Production
The operation running one or two tractors, producing 400–2,000 bales per season across hay and straw, and needing a machine that any farm worker can operate without a learning curve — the 9YG-1.0 was built for this. The compact footprint parks in a standard machinery shed bay, the low weight means the family’s 80 hp tractor doubles for other tasks without towing a 4+ tonne baler everywhere, and the sensor-controlled netter removes the timing judgement that leads to inconsistent bales on older manually-triggered machines.
Beef & Sheep Silage — 200 to 800 Bale Batches
Beef and sheep properties building annual silage reserves or drought feed stockpiles typically work in batches of 200–800 bales, often with one operator and whatever tractor is available. The 9YG-1.0’s 40–100 bale/hour rate comfortably handles these volumes in a single day without operator fatigue. The Φ1,100 mm bale diameter wraps efficiently with EverPower’s 9YCM-850 wrapper or most third-party satellite wrappers, and the 1,000 mm bale width is handleable with compact telehandler spikes rather than requiring dedicated bale-handling attachments.
Straw Baling — Wheat, Barley & Oat Residue
Post-harvest straw baling in WA, NSW, and SA is typically a compact, fast operation where machine downtime is more costly than machine purchase price. The 9YG-1.0’s light weight and simple drive system minimise field breakdown risk, and the 1,900 mm pickup handles the wide, low-density straw windrows that big headers deposit without needing to rake them narrower first. Several operations across WA’s Avon Valley run the 9YG-1.0 specifically for their straw season and store it with minimal maintenance across the rest of the year.
Hobby Farms, Agistment Properties & Rural Lifestyle Blocks
The entry price point, compact size, and 65 hp minimum power requirement make the 9YG-1.0 the only practical EverPower baler for hobby farms and rural lifestyle properties running compact utility tractors. The sensor-controlled density system means inexperienced operators produce acceptable bales without the trial-and-error period that manual-timing machines require, and the light machine weight keeps tractor stress and tyre wear within what smaller utility tractors can handle sustainably.
Maintenance — Built Simple, Stays Simple
Daily Checks (5 Minutes)
The 9YG-1.0’s simpler drive system reduces the daily check list compared to larger machines. Inspect spring-tooth tines for bending, grease the six main daily nipples (pickup cam tracks, chain tensioners, door pivot), verify the net knife condition, and confirm PTO engagement. That covers it. The smaller component count means less to check and less to go wrong — a genuine advantage on operations where the baler is run by different workers across the season.
Every 300–400 Bales
Grease the 16 drum bearings through the side-panel nipples (two shots each). Check single-chain tension on both drive sides — the tensioners are simpler on the 1.0 than the dual-chain S9000 Series and benefit from a visual check every few hundred bales. Top up the auto-lube tank if fitted. Inspect the density sensor face for crop accumulation and wipe clean.
End of Season
Full grease service. Hydraulic oil and filter change. Replace worn spring-tooth tines as a set — individual tine replacement on a mixed-wear set creates an uneven pickup pattern across the season. Check pickup tine carrier bars for cracking, particularly around the welds at each tine mounting point. EverPower holds complete 1.0-spec tine sets at Condell Park for next-day delivery nationally.
Why the 9YG-1.0 Is the Smart Entry Point
Compatible with 65 hp tractors. No ballast requirements, no dedicated machine assignment. Parks in a standard bay.
Same electronics as the S9000 Series. Consistent bale weight without manual timing judgement — works for any operator.
30–40% below equivalent European machines in this size class. The most cost-effective path to reliable net-wrap baling.
Whole-machine cover from EverPower Australia. Parts held in Sydney; 72-hour national delivery.
About EverPower Baling Machinery Australia
EverPower Baling Machinery Australia Pty Ltd — 27 Harley Crescent, Condell Park NSW 2200 — is the direct Australian arm of a high-tech manufacturer with ISO 9001 certification, a 32,000 m² factory, 180 staff, and a dedicated R&D centre. Every machine is backed by a genuine Australian warranty administered from our Sydney office. Spare parts are stocked locally for 72-hour national delivery. We do not process warranty claims offshore.
Call +61 2 9708 3322, email [email protected], or read more at silage-baler.com/about-us.
Frequently Asked Questions
The Right Baler for the Right Farm
Contact EverPower to confirm the 9YG-1.0 suits your tractor and annual bale volume, or to compare it with the 1.25A for your operation.
